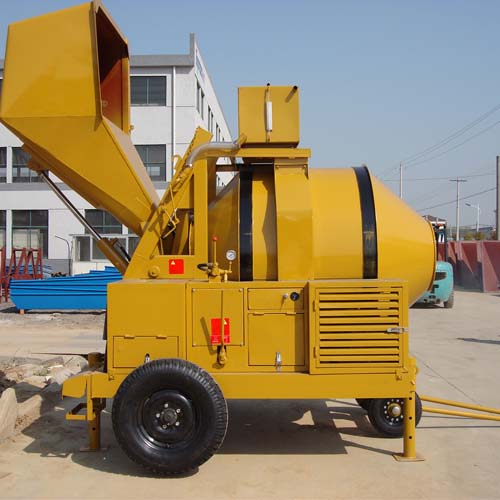

Diesel Reverse Drum Mixer
Paratemer
| Model | RDCM500-16DH | RDCM500-16DHS |
| Drum Volume | 2600L | |
| Capacity of loading | 750L | |
| Capacity of discharging | 500L | |
| Drum Thickness(mm) | 5mm | |
| Hopper Thickness(mm) | 3mm | |
| Capacity of water tank | 140L | |
| Power source | Diesel engine,single cylinder,water-cooled with battery starter | |
| Power | 16kw | |
| Max towing speed | 20 kw/h | |
| Output | 18 -22 cubic meter/hour | |
| Size(L×W×H) | 3750×2240×3800mm | 3900×2300×3750mm |
| Total weight | 2050kg | 2350kg |
| Hopper lifting model | Hydraulic tipping hopper | Wire rope hoisting sliding hopper |
| Towing Wheel | Two wheels or Four wheels | |
Container Loading Plan
| 20’ container can be loaded with | 2 units |
| 40’GP container can be loaded with | 4 units |
