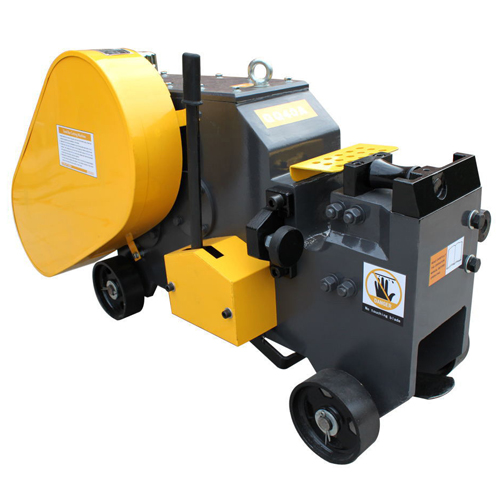

Steel Bar Cutter Machine
| The diameter of the cuttable steel bar | 6-40mm Q235 |
| (tensile strength ob≤450MPa) | |
| Biggest cuttable size of the flat steel bar | 60×12mm |
| Biggest cuttable size of the square steel bar | (Q235A) 32×32mm2 |
| Cutting speed | 41 times/minute |
| Motor model | Y100L-2 |
| Motor power | 3KW(B) |
| Motor rotation speed | 2880r/minute |
| Weight | 380kg |
| Exterior dimensions | 1350×550×730mm |
