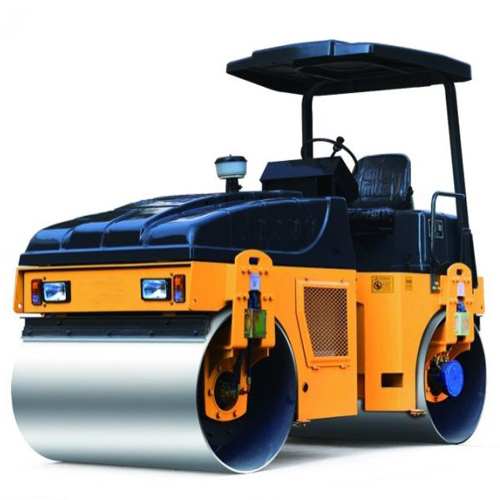

Tandem Vibratory Roller

Main Specifications

Operating weight(kg) 4500/4600
Diameter of vibration drum(mm) 860
Rolling width(mm) 1320
Static linear pressure(N/cm) 170
Centrifugal torque(kN/m) 13×2
Centrifugal force (vibration) (kN) 42×2
Vibration/Oscillation amplitude (mm) 0.5/0.56
Vibration/Oscillation frequency(Hz) 50
Moving speed Range (km/h) 0-10
Gradeability 30%
Engine model (CHANGCHAI OR KUBOTA V2403) 4L68
Rated speed(r/min) 2600
Rater power(kW) 40
Overall dimensions:长宽高LWH(mm) 3120×1460×2560
