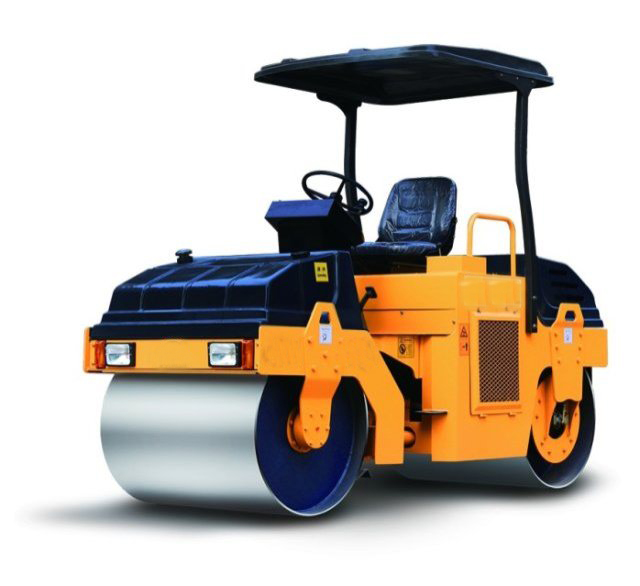

Tandem Vibratory Roller
Main Specifications
| Operating weight(kg) | 3000 |
| Diameter of vibration drum(mm) | 800 |
| Rolling width(mm) | 1000 |
| Static linear pressure(N/cm) | 162 |
| Centrifugal force(kN) | 35 |
| Vibration frequency(Hz) | 50 |
| Theoratical amplitude of vibration(mm) | 0.58 |
| Moving speed Range Ι(km/h) | 2 |
| Moving speed Range П(km/h) | 5.6 |
| Gradeability | 20% |
| Engine model(CHANGCHAI) | N385Q |
| Rated speed(r/min) | 2400 |
| Rater power(kw) | 21 |
| Overall dimensions: LWH(mm) | 2990×1280×2360 |
