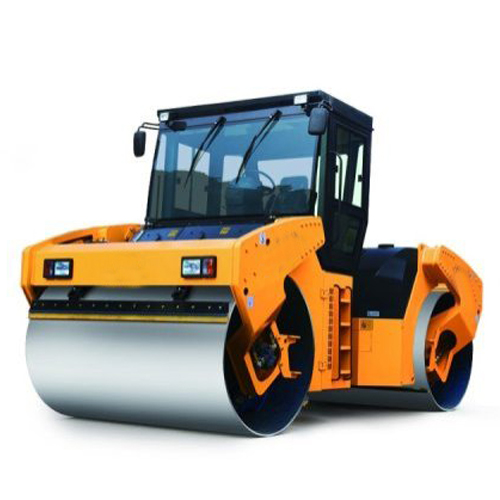

Tandem Vibratory Roller
Main Specifications
| Operating weight(kg) | 13000 |
| Diameter of vibration drum(mm) | 1350 |
| Rolling width(mm) | 2130 |
| Centrifugal force(kN) | 138×2/95×2 |
| Vibration/Oscillation frequency(Hz) | 40/48 |
| Vibration/Oscillation amplitude(mm) | 0.75/0.35 |
| Centrifugal force(kN) | 95×2 |
| Centrifugal force(kN.M) | 75×2 |
| Vibration/Oscillation frequency(Hz) | 40/48 |
| Vibration/Oscillation amplitude (mm) | 0.75/0.35 |
| Static linear pressure(N/cm) | 305 |
| Moving speed Range Ι(km/h) | 0-6.5 |
| Moving speed Range П(km/h) | 0-12.5 |
| Engine model | Cummins4BTA3.9-C130 |
| Rater power(kW) | 97 |
| Rated speed(r/min) | 2500 |
| Overall dimensions: LWH(mm) | 5010×2400×3100 |
