Self-Loading Mobile Concrete Mixer

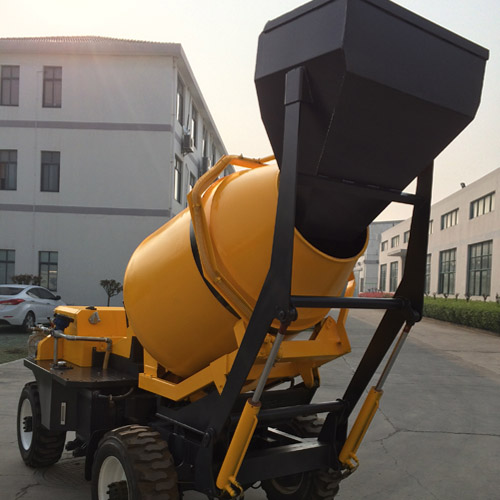

Mobile Concrete Mixer SD1000M
| Model | SD1000M | |
| Effective capacity per mix | 750L | |
| Load | 2000 kg | |
| Drive type | Articular frame ;4×4 and Driving Shaft Connect | |
| Max.speed(km/h) | 25 | |
| Grade ability(%) | 36 | |
| Min.turning radius(m) | ≤5.5 | |
| Min ground clearance(mm) | ≥248 | |
| Tyres | front wheel(mm) | 10-16.5 |
| rear wheel(mm) | 10-16.5 | |
| Clutch | Constant-contact,single-disc,dry clutch | |
| Gear box | Four forward speeds and Four reverse speed | |
| Tipping system | Hydraulic tipping hopper and 180 Angle dIscharge | |
| Steering Gear system | Hydraulic steering | |
| Wheel base | 2000 | |
| Wheel tread | 1340 | |
| Electric starting | Yes | |
| Engine | model | ZN385Q |
| type | water cooling | |
| 12 hours rated power | 22kw/2600rpm(385) | |
| Overall size(mm) | 3620×1800×1680/1800/2500 | |
| Weight(kg) | 2450 | |
