Building Hoist

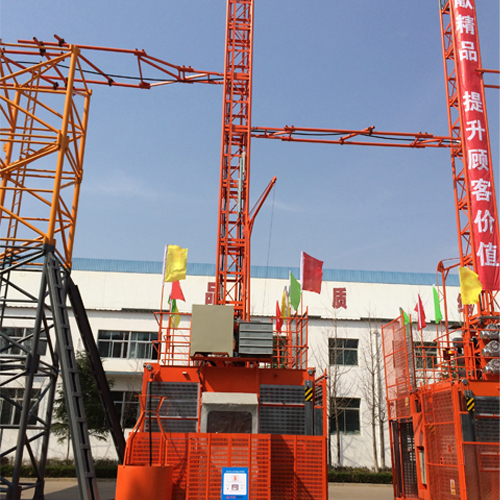

Building HoistSC100

Name Unit Parameters
Height m 300
Rated Loading Capacity kg 1000
Max. Loading Worker Number Piece September 9
Boom Lift Weight kg ≤200
Lifting Speed m/min 0~45 0~50 0~66
Electrol Motor Model
Power kw 11×2/15×2
Speed Limiter Model
Rated Tripping Speed m/s 1.4 1.2
Rated Automatic Load kn 40
Reducer Model
Center Distance mm 125
Speed Ratio
1:10 1:14
BRAKING Distance m 0.3~1.2
Mast Section Dimension mm 650×350×1508
Crane Cage Inner Net Dimension m 1.8×1.75×2.06
Hoistway Dimension m 2.09×2.5
Free End Height of The Guide Rail Frame m 9
Direct Attached Frame Installing Interval m/set 6~7.5
Distance Bwtween Two Embedded Parts mm 500~800
Installing Distance between Guide Rail Frame Center and Building mm 200~500
Remark: if the Height of Construction is higher than 120m, you should choose strengthen mast section and cable Pulley
