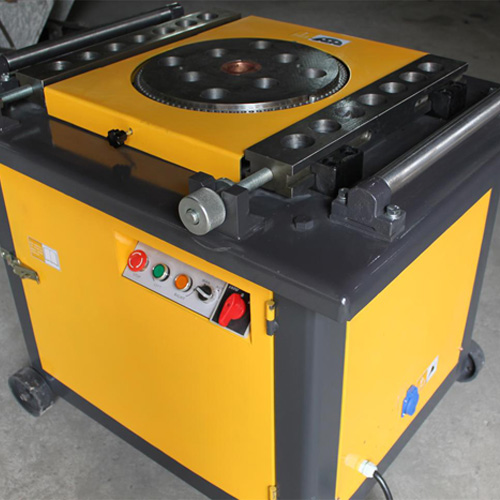

Steel Bar Bender Machine
Main Specifications
| BENDING CAPACITY | 6-50 mm (ob≤450N/mm2) | 6-40 mm (ob ≤650N/mm2) |
| Model | GW50 | GW50 |
| OPERATION | Automatic | Manual |
| TYPE OF MOTOR | YEJ 100L2-4 (Brake motor) | Y100L2-4 |
| MOTOR POWER | 4 KW-4P | 4 KW-4P |
| HORSE POWER | 5 HP | 5 HP |
| MOTOR ROTATION SPEED | 1420 R/min | 1420 R/min |
| SPEED OF WORKING DISK | 9 R/min | 9 R/min |
| NOISE VALUE (1m away) | ≤80dB(A) | ≤80dB(A) |
| WEIGHT | 466 Kg. | 476 Kg. |
| DIMENSIONS (L×W×H) | 1040×820×800 mm | 1040×820×800 mm |
