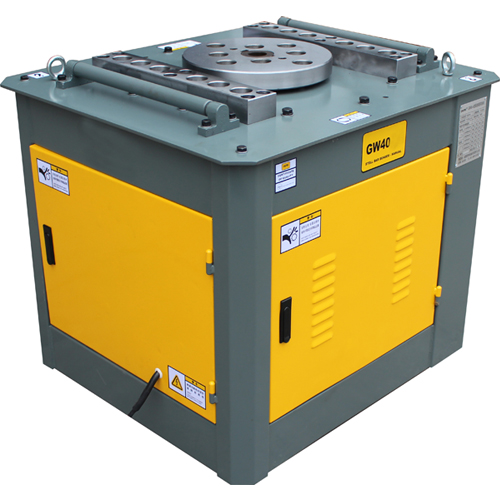

Steel Bar Bender Machine

Main Specifications

BENDING CAPACITY 6-42 mm (ob≤450N/mm2) 6-36 mm (ob ≤650N/mm2)
Model GW40 GW40
OPERATION Automatic Manual
TYPE OF MOTOR YEJ 100L2-4 (Brake motor) Y100L2-4
MOTOR POWER 3 KW-4P 3 KW-4P
HORSE POWER 4 HP 4 HP
MOTOR ROTATION SPEED 1420 R/min 1420 R/min
SPEED OF WORKING DISK 12 R/min 12 R/min
NOISE VALUE (1m away) ≤80dB(A) ≤80dB(A)
WEIGHT 360 Kg. 320 Kg.
DIMENSIONS (L×W×H) 810×760×860 mm 810×760×860 mm
